클릭해서 제품 크게보기0.1V to 1000V/1x10^3Ω to 3x10^16Ω 디지털 초절연저항계
- 제조사
- HIOKI
- 제품명
- DIGITAL SUPER MEGOHMMETER DSM-8542

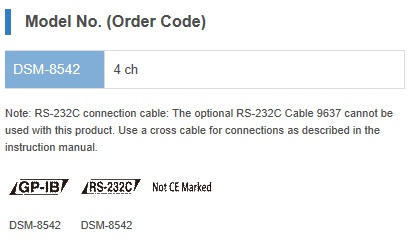

- 제품번호
- 8808-51ㅍ
● 용량성 또는 고절연 재질의 누설전류를 고속 고정확 측정
● DSM-8104의 4채널 버젼 (전압출력을 사용 할 수 없습니다) 으로 측정 및 다른 기능은 동일
● PSU-8541(파워소스유닛)와연계하여 4채널 동시 측정
■ DSM-8542 basic specifications (accuracy guaranteed for 1 year)
Number of channels | 4 ch |
|---|---|
Other | Same as DSM-8104 specifications |
■ PSU-8541 basic specifications
Configuration | Voltage generator [HIGH]: 1 circuit, [LOW]: 1 circuit |
|---|---|
Voltage generator HIGH (Accuracy) | 0.1 V to 250.0 V (±0.1 % of setting ±150 mV), Max. 600 mA |
Voltage generator LOW (Accuracy) | 0.1 V to 10.0 V (±0.1 % of setting ±150 mV), Max. 600 mA |
Current limiter | 0.1 V to 250.0 V: 5/10/25/50 mA, 251 V to 1,000 V: 5 mA |
Control | Controlled by the DSM-8542 |
Control method | Voltage setting, Current limit for measurement (common for all channels), Current limit for charging (common for all channels), Voltage output On/Off, Voltage generator filter On/Off |
Power supply | 100 V AC ±10 %, 50/60 Hz, 350 VA |
Dimensions and mass | 332 mm (13.07 in) W × 178 mm (7.01 in) H × 450 mm (17.72 in) D, 28 kg (987.7 oz) |
Accessories | Power cord × 1, Instruction manual × 1 |
