클릭해서 제품 크게보기1x10^2Ω to 1x10^15Ω 8채널 디지털 초절연저항계
- 제조사
- HIOKI
- 제품명
- SUPER MΩ HiTESTER SM-7810
- 제품번호
- SM-7810
● MLCC (적층세라믹콘덴서) 누설 전류 측정을 위한 초절연저항계
● 6.8ms 고속으로 8채널 동시 측정
● 고전류 Range (1mA)로 대용량 MLCC의 누설전류를 고속 측정
● contact check function으로 신뢰할수 있는 측정을 실현
■ Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
Number of channels | 8 channels (parallel and simultaneous measurement) |
|---|---|
Applied voltage | Supply voltage from external power source (voltage input terminal on the rear panel) |
Measurement range | Current: 1 pA to 1 mA, |
Measurement speed INDEX typical time | FAST: 6.8 ms, MED: 26.0 ms, SLOW: 100.0 ms, SLOW2: 320.0 ms |
Basic measurement accuracy (1µA range, FAST) | Current accuracy: ±(2.0+ (0.5 µA / (Measured current value)) ) % |
Testing voltage setting | 0.1 V to 1000.0 V (Resolution: 0.1 V) |
Contact check | Judges the contact state by comparing the measured capacitance to a reference value |
Other functions | Trigger delay, averaging, contact check, jig capacity open correction, Measured value comparison and judgment, jig resistance open correction functions |
Interfaces | GP-IB, RS-232C, EXT I/O |

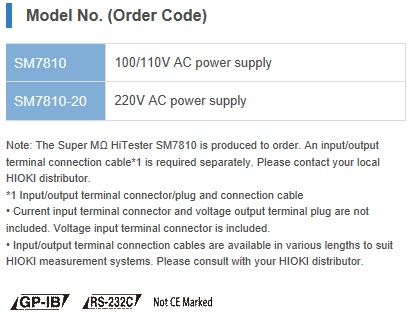

Power supply | SM7810: AC 100 V/110 V, 50/60 Hz, 30 VA |
Dimensions and mass | 425 mm (16.73 in) W × 99 mm (3.90 in) H × 488 mm (19.21 in) D, 10.5 kg (370.4 oz) |
Accessories | Power cord ×1, Instruction manual ×1, Voltage input connector L2220 ×1, Spare fuse (built into inlet) ×1, Rubber feet ×4 |
